AOTONS
Made with special shock-absorbing materials, AOTONS prevents facility damage
in logistics and manufacturing sites.
It enhances asset protection and maintenance efficiency by dissipating impacts.
Engineered with special shock-absorbing materials,
this product prevents facility damage and dissipates impact,
enhancing asset protection and maintenance efficiency.
-
Bollard
-

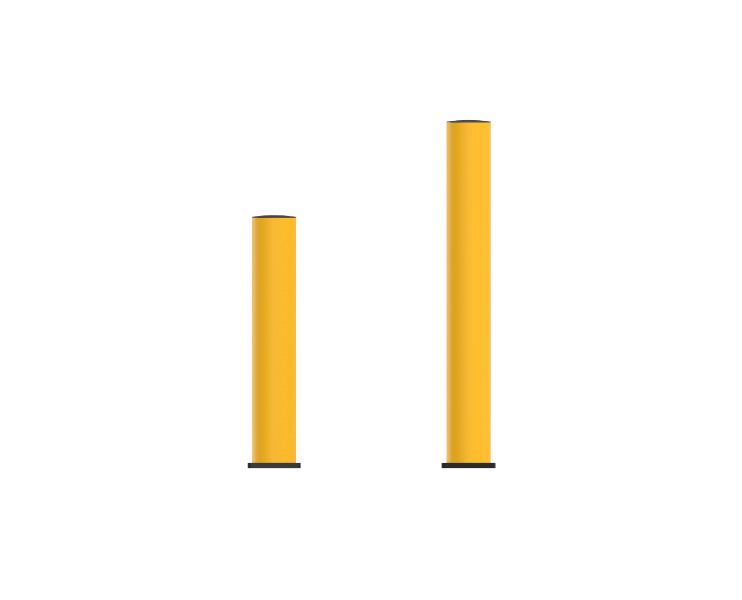

Bollard 130
-

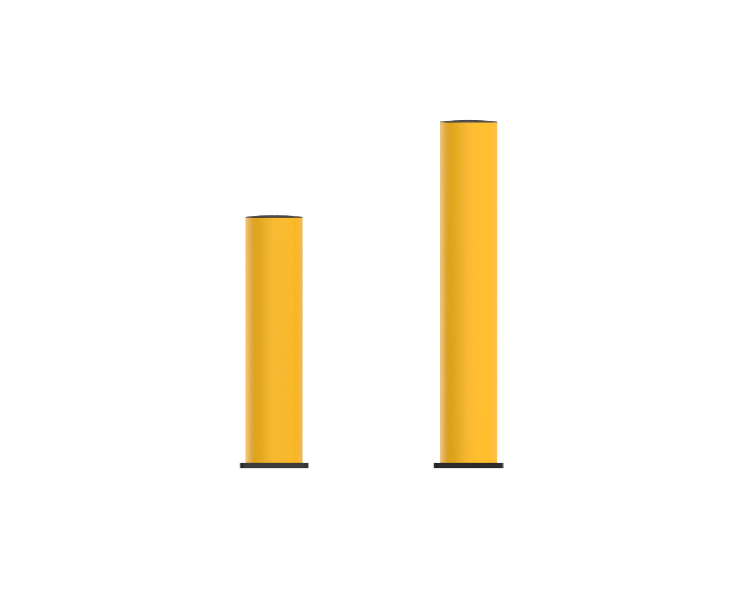

Bollard 168
-

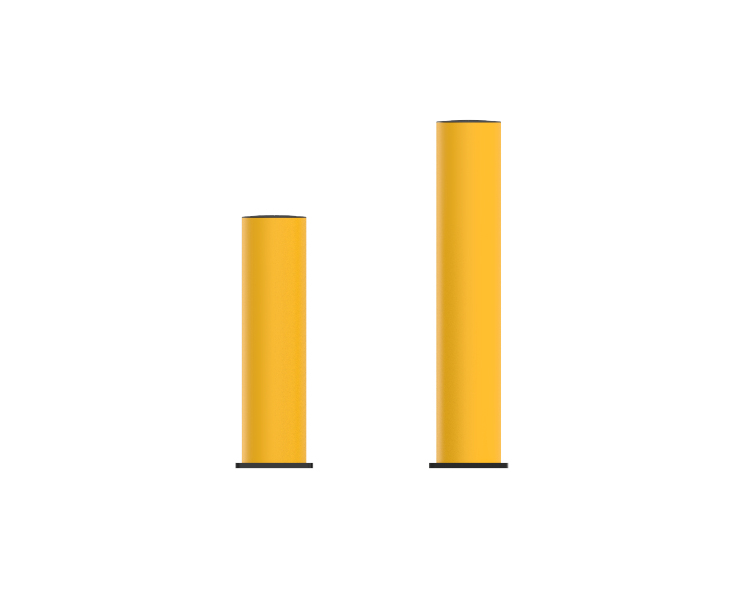

Bollard 190
Product Type
Bollard 130 Bollard 168 Bollard 190 Height
800 / 1150 mm
800 / 1150 mm
800 / 1150 mm
Post
Ø 130 mm
Ø 168 mm
Ø 190 mm
Plate
170 × 170 × 10 mm
200 × 200 × 10 mm
230 × 230 × 14 mm
Max Impact Absorption
3,000 J
3,600 J
6,900 J
-
-

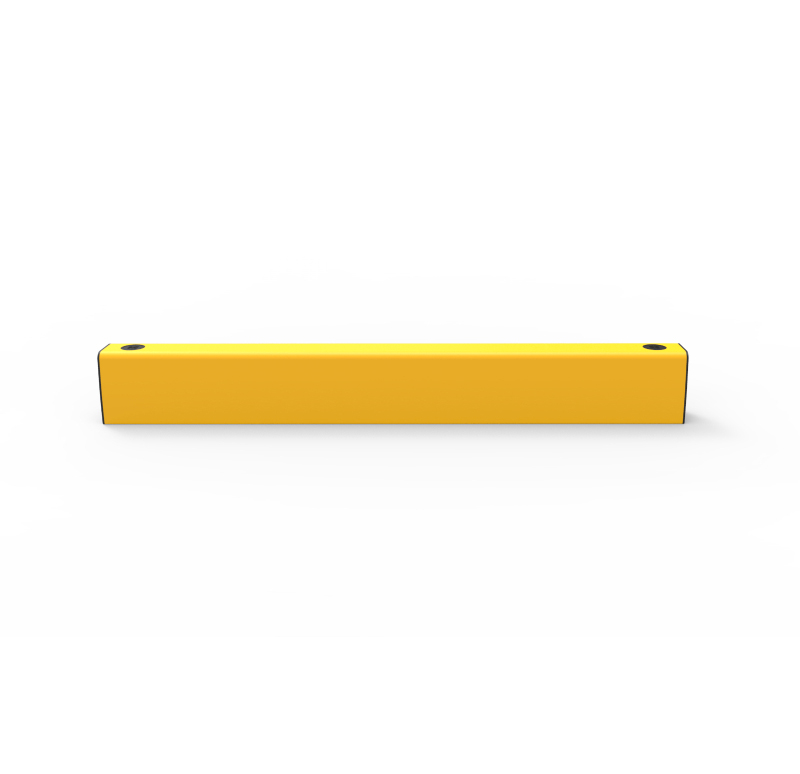

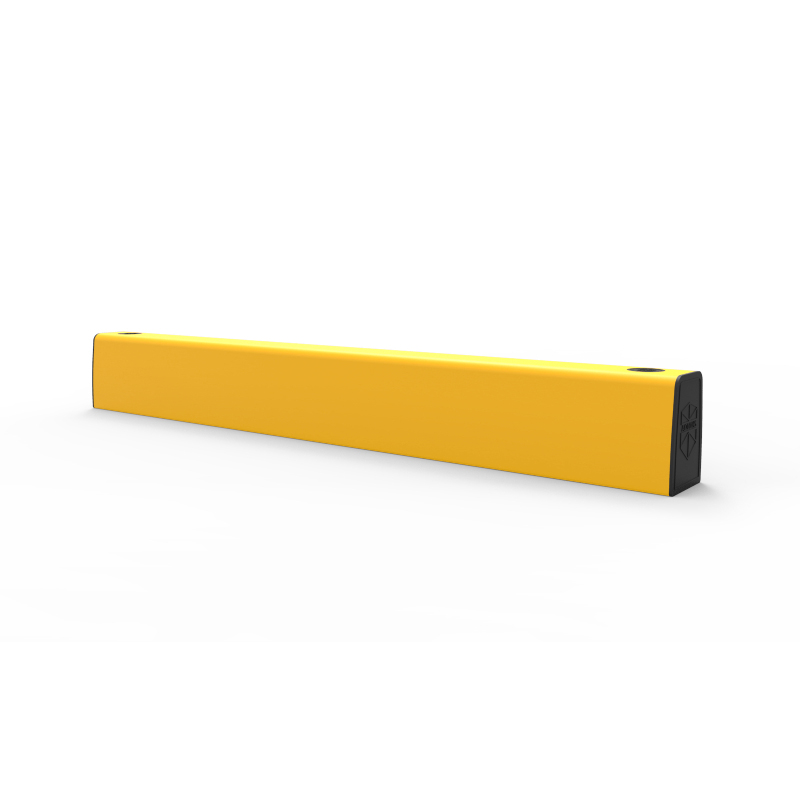

Ground Protection Barrier
Size
Ø 190 mm × 130 mm
Length
2000 mm
Max Impact Absorption
5,800 J
-
-

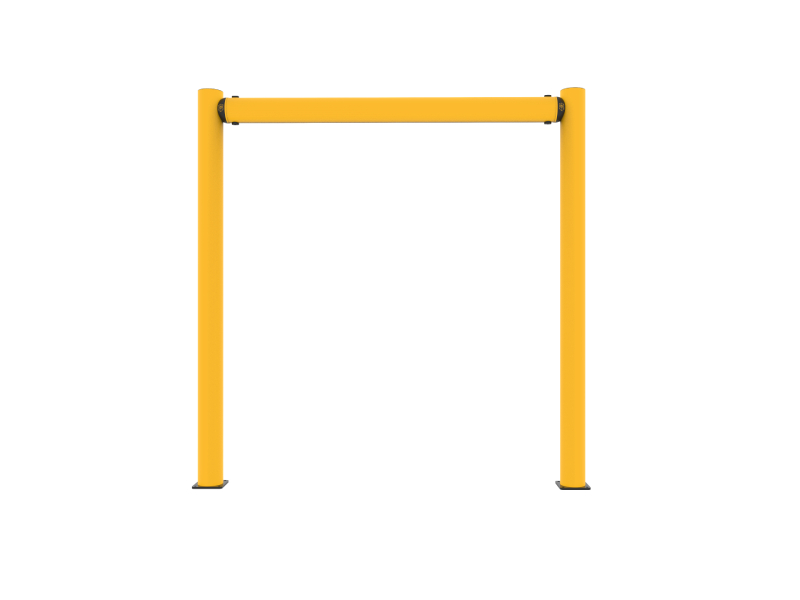

Facility Protection Barrier
A highly customizable product designed to fit various installation site dimensions.
Height
3,000 ~ 4,000 mm
Post
190 mm
Rail
Ø 148 mm
Impact Absorption
3,600 J
-
-

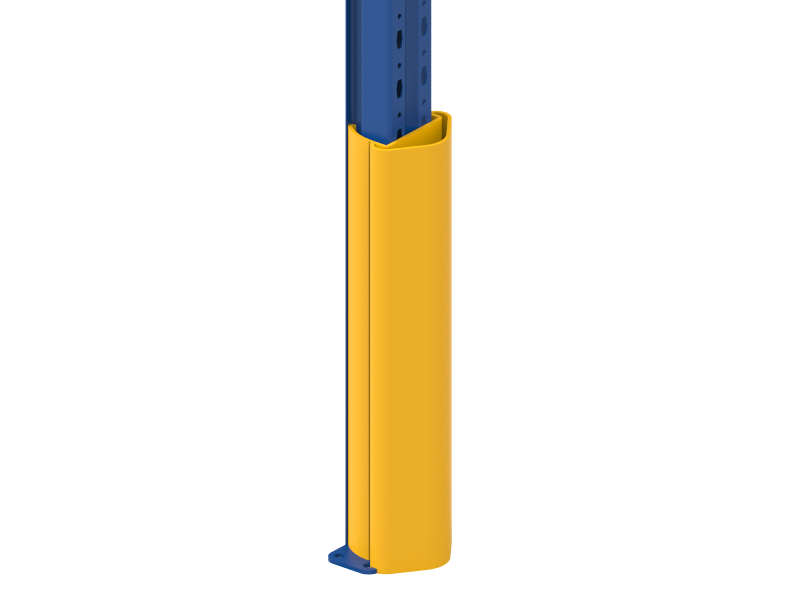

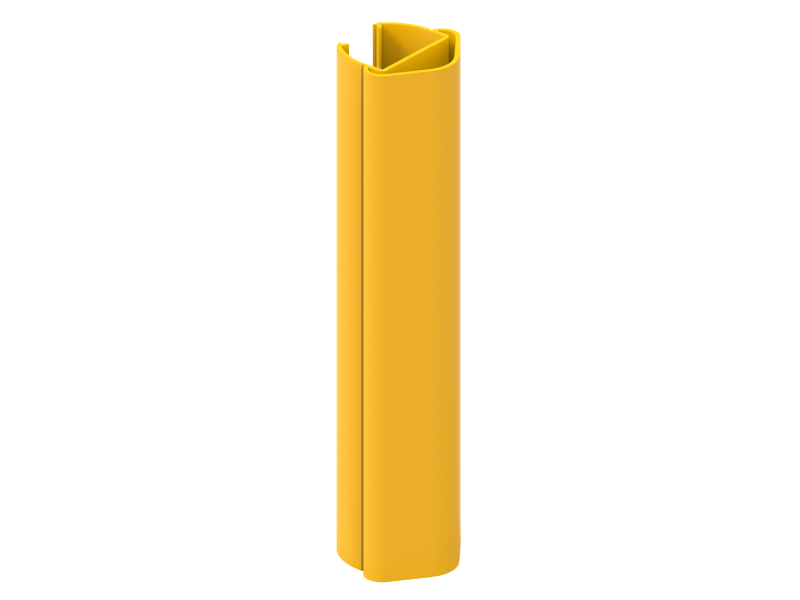

Rack Guard
Height
600 mm
Compatible Rack Size (Width)
80 ~ 100 mm
Max Impact Absorption
1000 J
-

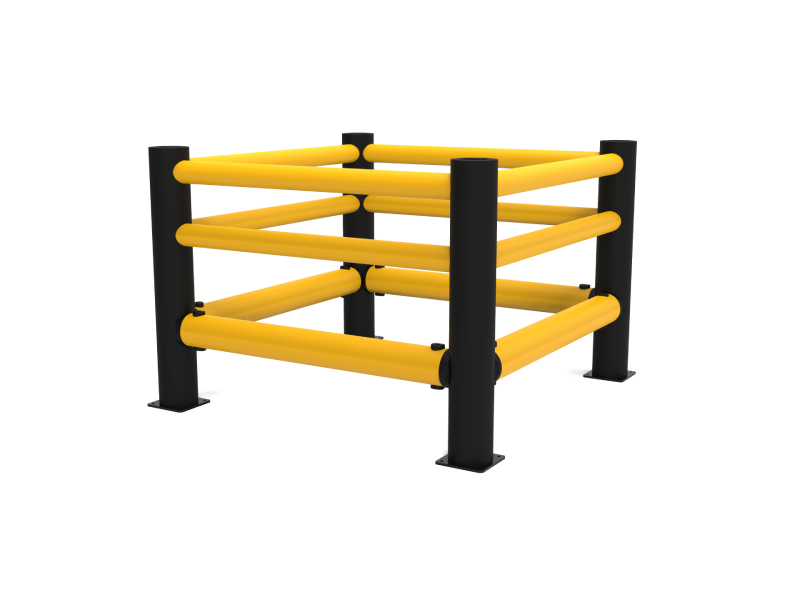

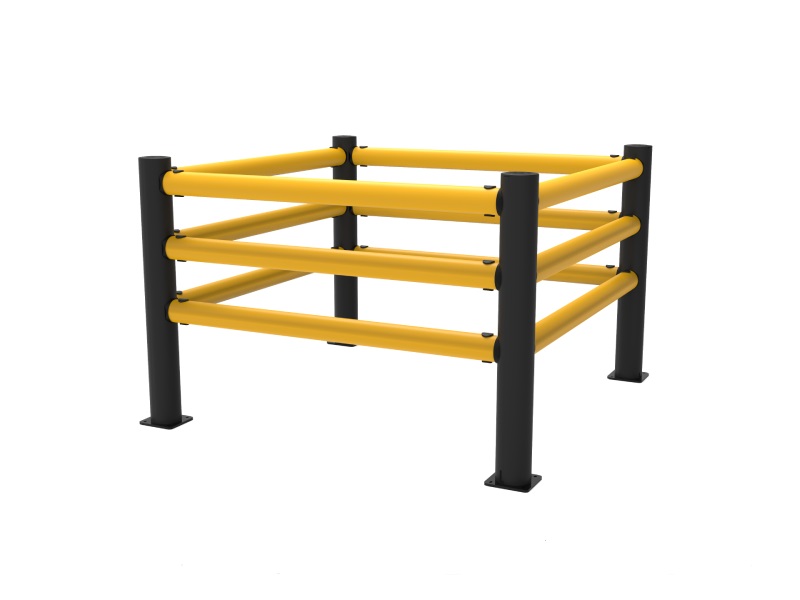

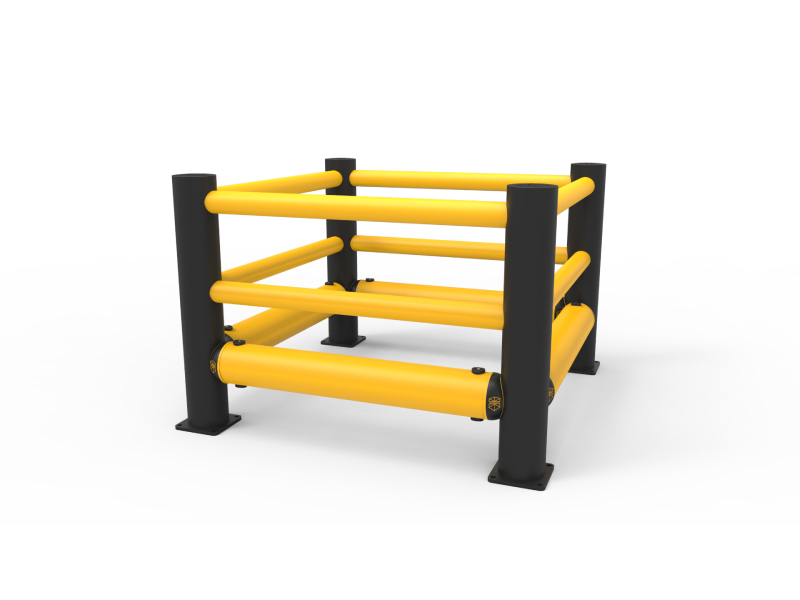

Column Protection Barrier
-
CTR 100
-
CTR 148
-
CTR 190
Product Type
CTR 100 CTR 148 CTR 190 Height
1150 mm
1150 mm
1150 mm
Post
Ø 130 mm
Ø 168 mm
Ø 190 mm
Rail
Ø 100 mm,100 mm,100 mm
Ø 148 mm,148 mm,100 mm
Ø 190 mm,100 mm,100 mm
Length
600 ~ 2000 mm
600 ~ 2000 mm
600 ~ 2000 mm
Plate
170 × 170 × 10 mm
200 × 200 × 10 mm
230 × 230 × 14 mm
Max Impact Absorption
8,760 J
19,000 J
21,350 J
-
-

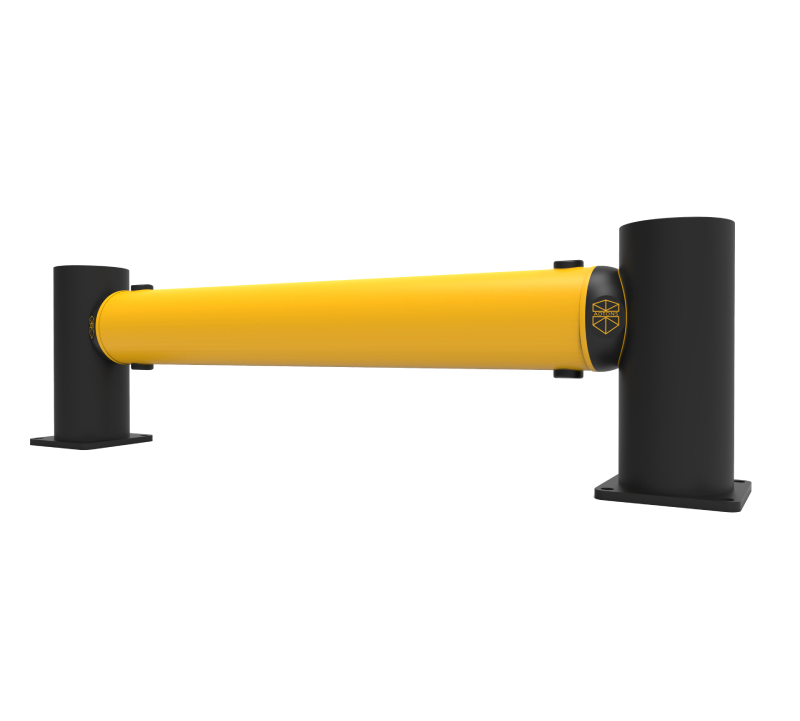

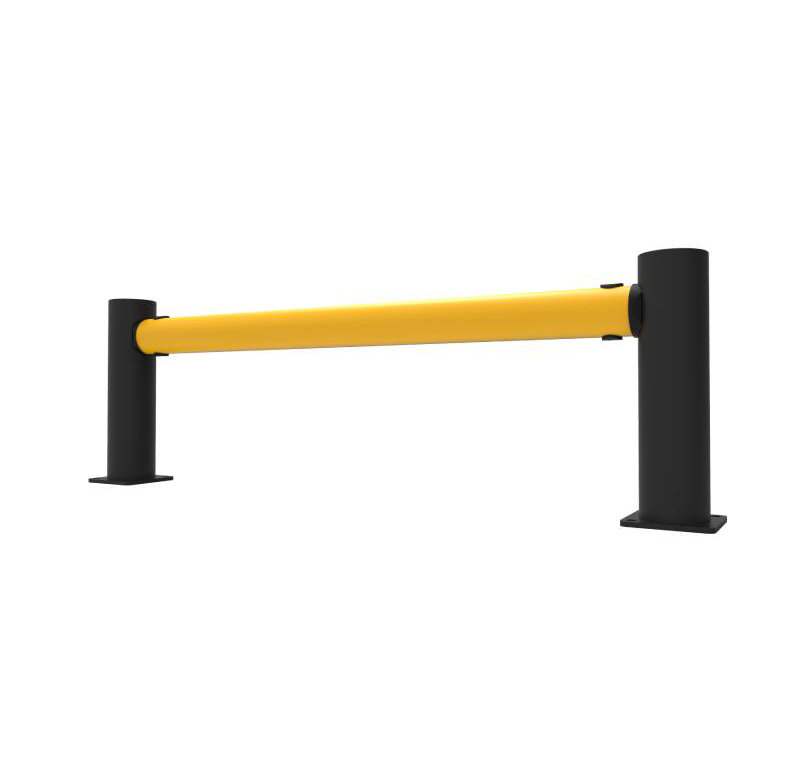

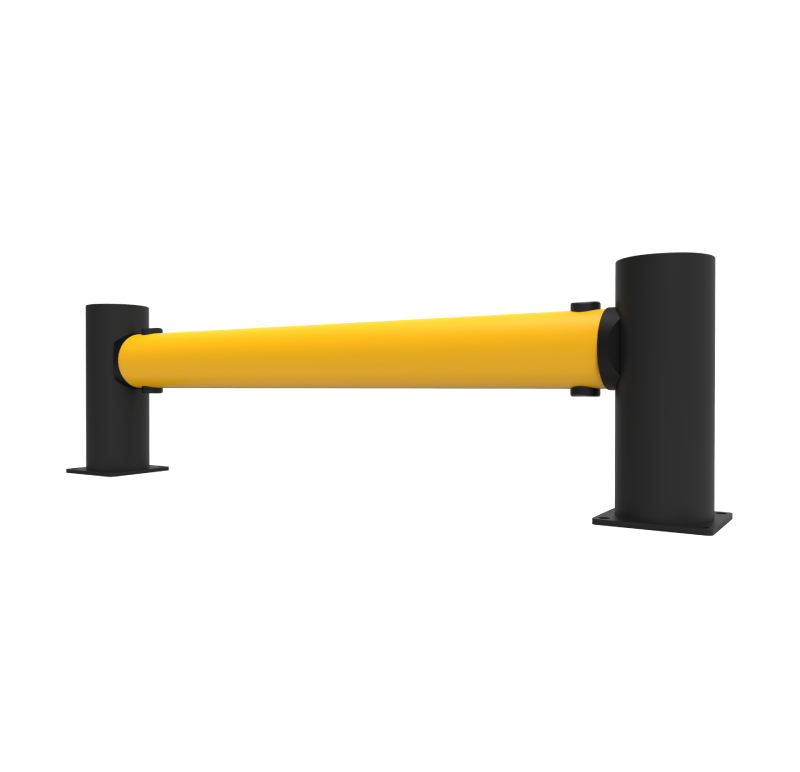

Single-Rail Protection Barrier
-
SR 130
-
SR 148
-
SR 190
Product Type
SR 130 SR 148 SR 190 Height
300 / 500 mm
450 mm
450 mm
Post
Ø 130 mm
Ø 168 mm
Ø 190 mm
Rail
Ø 100 mm
Ø 148 mm
Ø 190 mm
Length
1,000 ~ 2,000 mm
1,000 ~ 2,000 mm
1,000 ~ 2,000 mm
Plate
170 × 170 × 10 mm
200 × 200 × 10 mm
230 × 230 × 14 mm
Max Impact Absorption
3,850 J
14,400 J
21,350 J
-
-

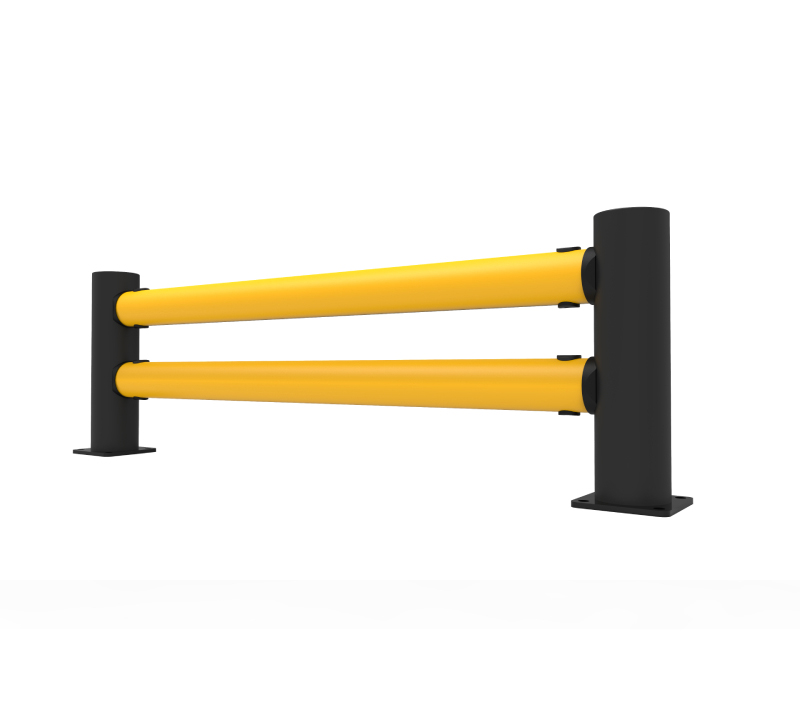

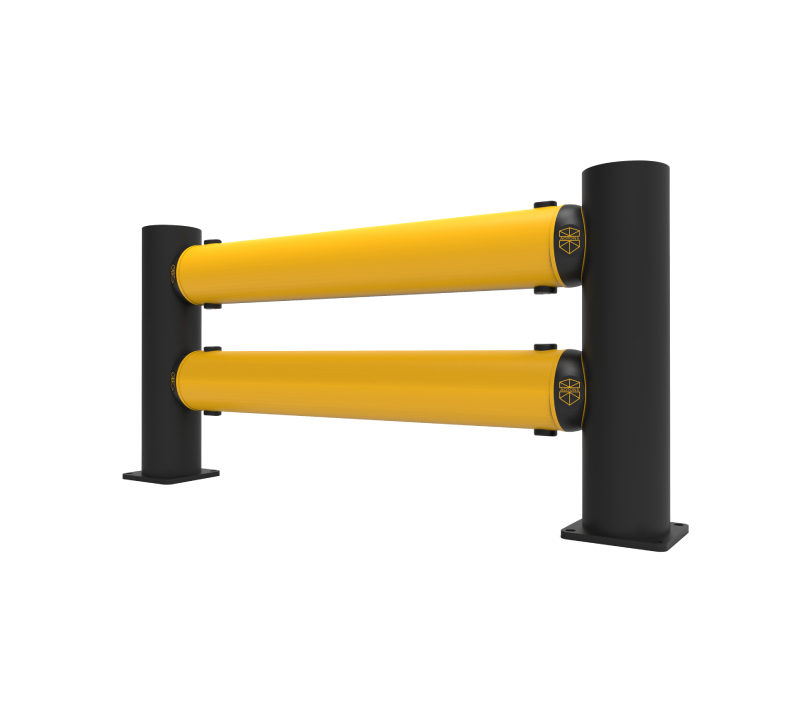

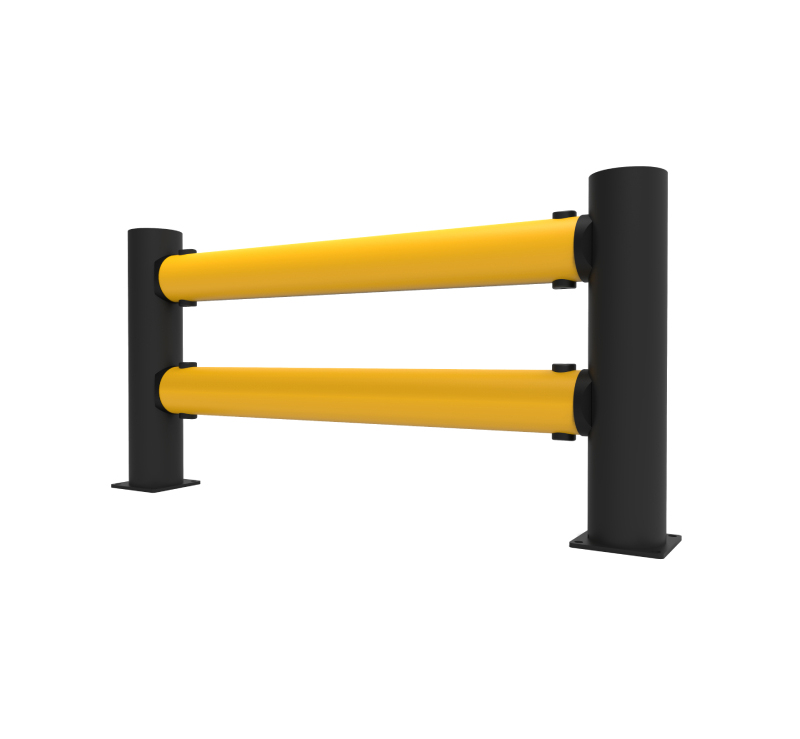

Double-Rail Protection Barrier
-
DR 130
-
DR 148
-
DR 190
Product Type
DR 130 DR 148 DR 190 Height
500 mm
800 mm
800 mm
Post
Ø 130 mm
Ø 168 mm
Ø 190 mm
Rail
Ø 100 mm
Ø 148 mm
Ø 190 mm
Length
500 ~ 2,000 mm
600 ~ 2,000 mm
600 ~ 2,000 mm
Plate
170 × 170 × 10 mm
200 × 200 × 10 mm
230 × 230 × 14 mm
Max Impact Absorption
6,780 J
19,000 J
21,350 J
-
-

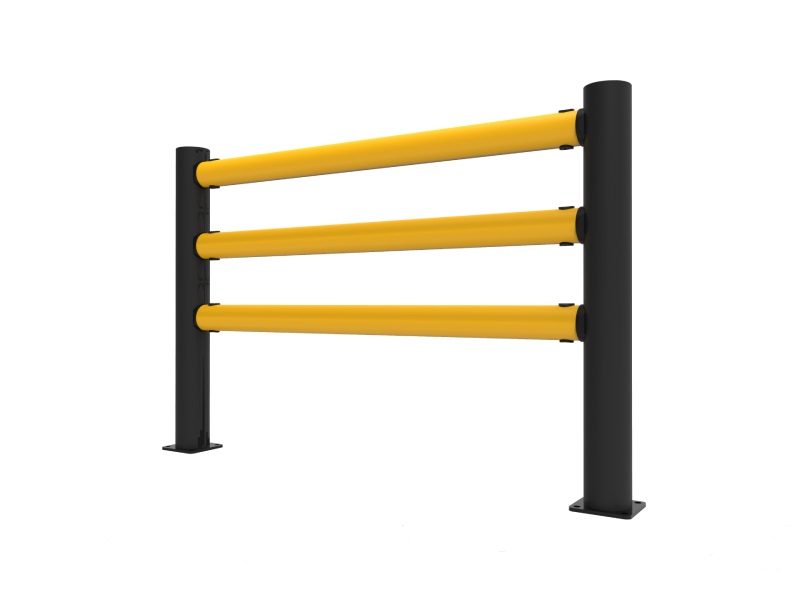

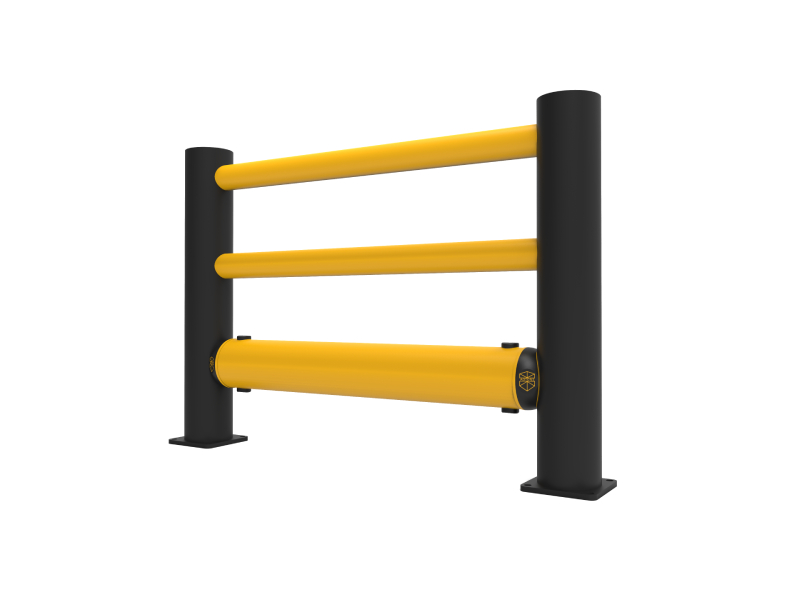

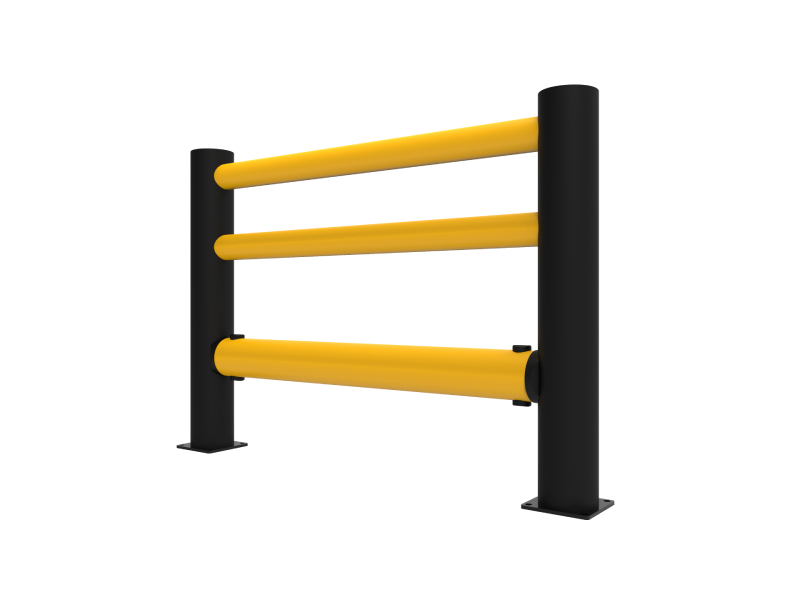

Triple-Rail Protection Barrier
-
TR 100
-
TR 148
-
TR 190
Product Type
TR 100 TR 148 TR 190 Height
1150 mm
1150 mm
1150 mm
Post
Ø 130 mm
Ø 168 mm
Ø 190 mm
Rail
Ø 100 mm × 3
Ø 148, 148, 100 mm
Ø 190, 100, 100 mm
Length
500 ~ 2,000 mm
600 ~ 2,000 mm
600 ~ 2,000 mm
Plate
170 × 170 × 10 mm
200 × 200 × 10 mm
230 × 230 × 14 mm
Max Impact Absorption
8,760 J
19,000 J
21,350 J
-
-

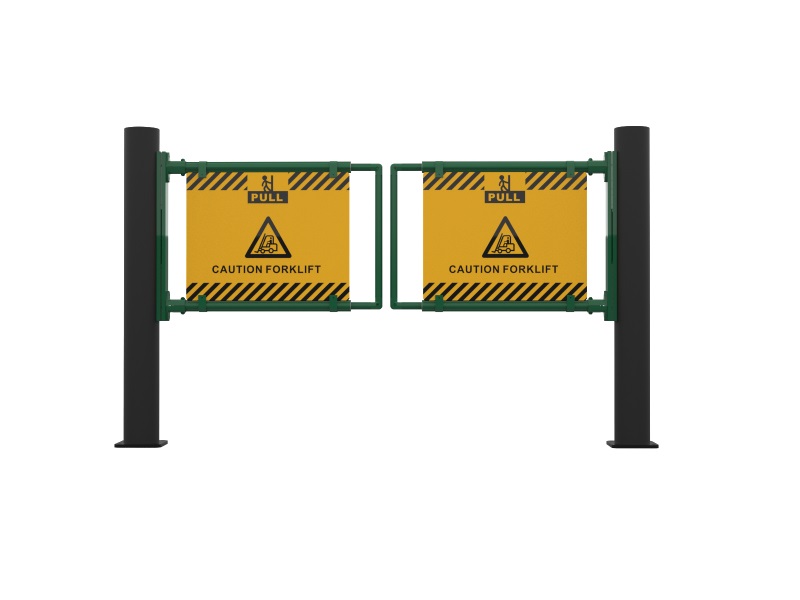

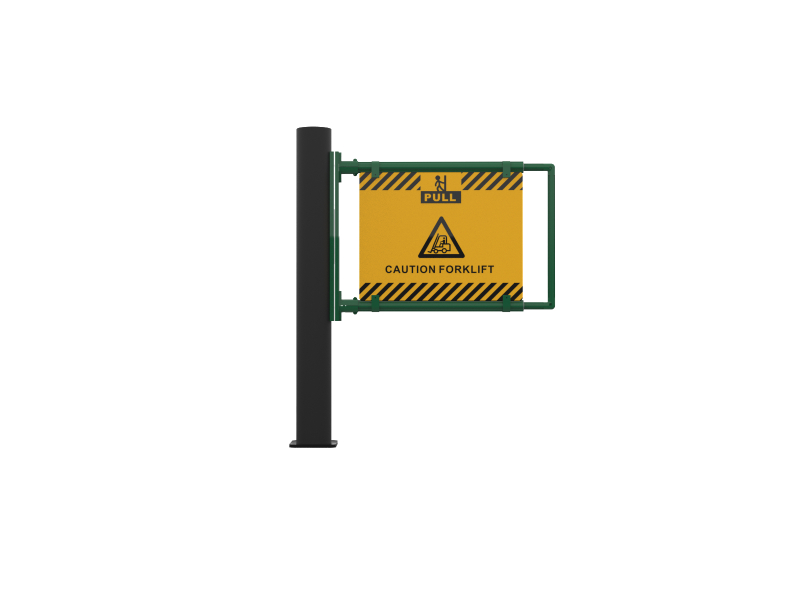

Swing Gate
Height
1150 mm
Post
Ø 168 mm
Length
600 ~ 1000 mm
-
