Options

We provide optional equipment that can be additionally configured
to suit the site environment and working conditions.

Provides optional equipment
that can be additionally configured
to suit various site environments.

• I VIEW Monitor
• Speed Control Assist System
• SAFLASH

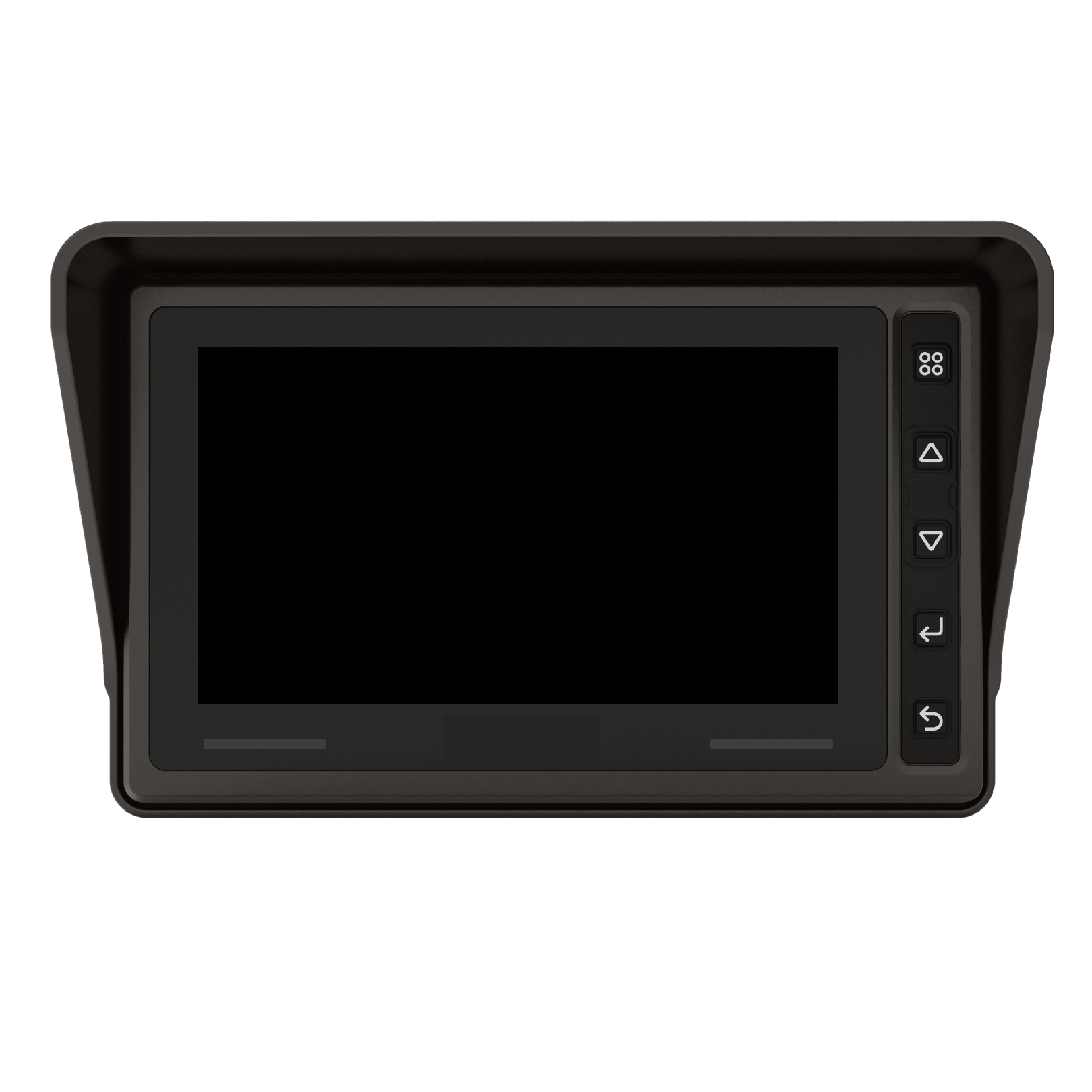

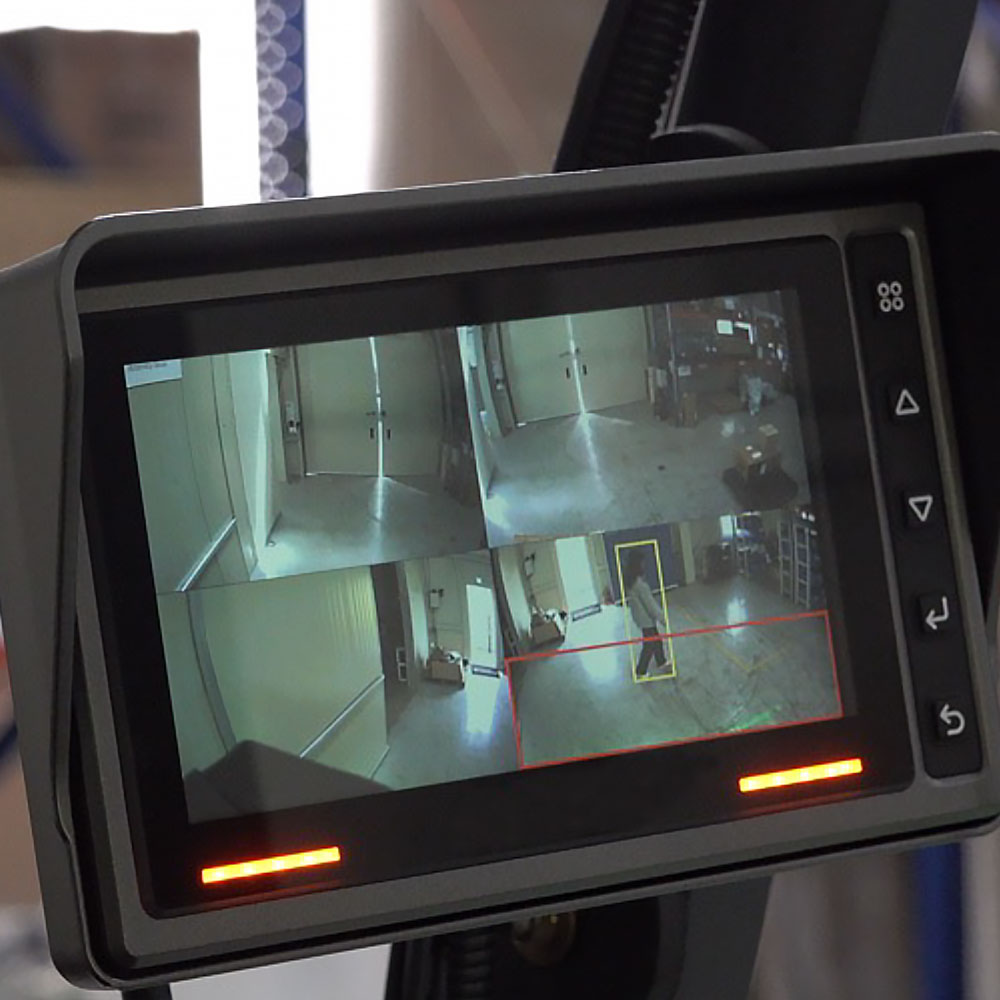

• I VIEW Monitor

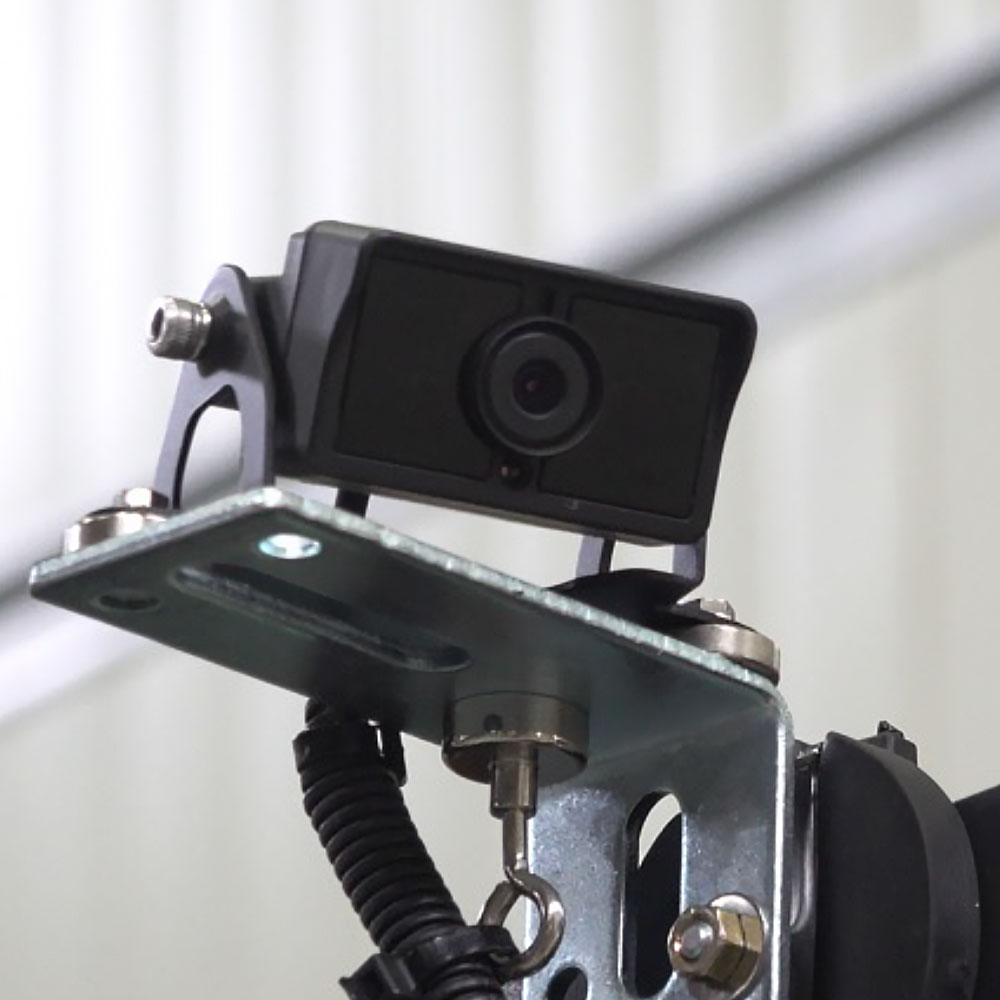

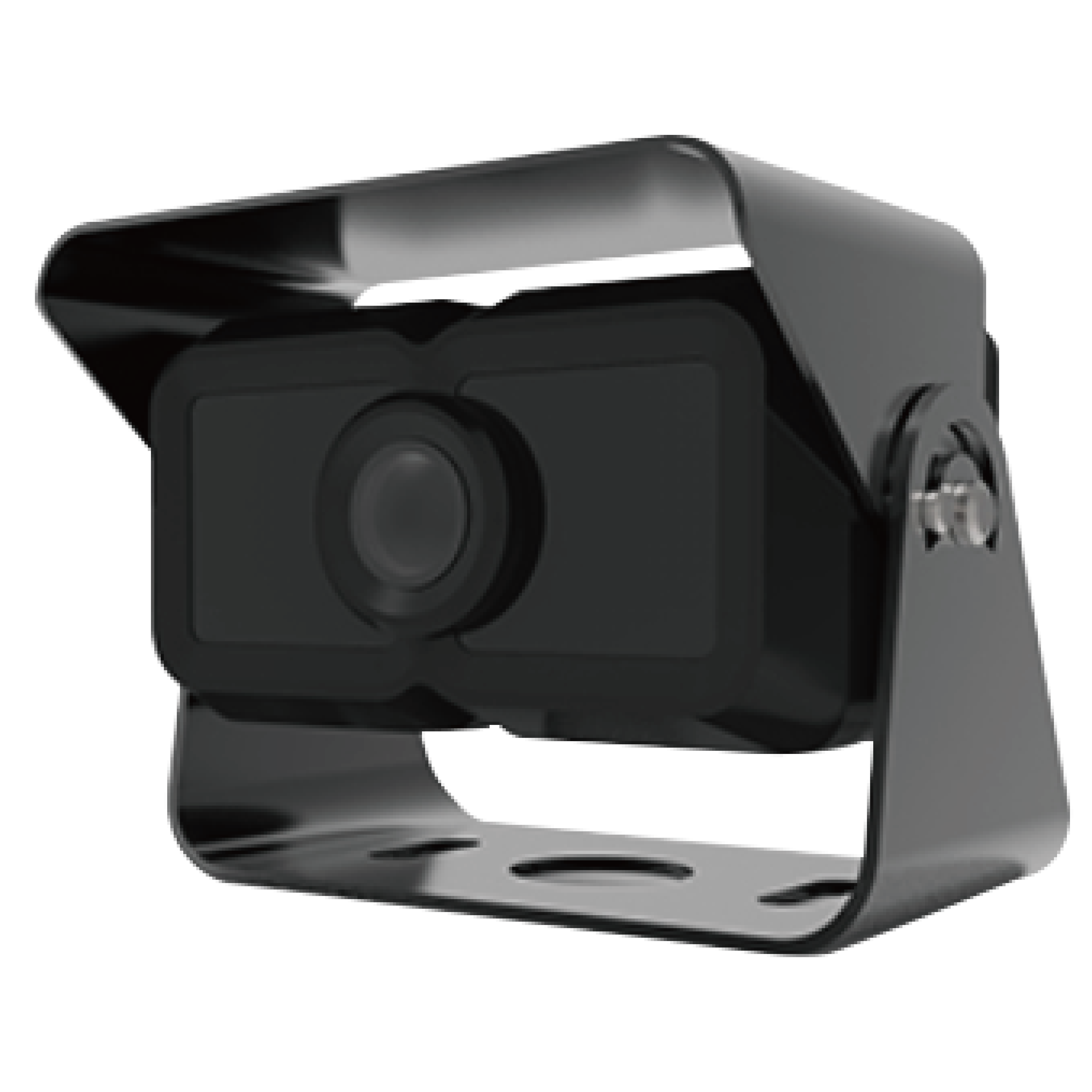

  This monitor interfaces with cameras and supports up to a 4-channel split-screen display.

  •
  •

  Operating Power	DC 12 ~ 48 V	Display Size	7 inch TFT LCD
  Resolution	1024 X 600	Operating Temperature	-20 ℃ ~ 70 ℃
  Camera Input	Supports up to 4 channels

• Heavy Equipment Speed Control Assist System

  This product allows for automated control by designating areas around a forklift that are difficult for the operator to perceive as caution/danger zones.

  •
  •

  Operating Power	DC 12 V / 0.5 A (6 W)	Interface	CAN Bus / Digital I/O
  Operating Power	-30 ~ 60 ℃	Control Method	Dedicated Controller
  Dimensions	130 x 180 x 60 mm	Material	ABS
  Detection Target	Vehicle Tag (VT) / Pedestrian Tag (PT) / Zone Tag (ZT) / I View+ / External Digital I/O

  Operating Power	-30 ~ 60 ℃	Control Method	Dedicated Controller
  Dimensions	130 x 180 x 60 mm	Material	ABS
  Operating Power	DC 12 V / 0.5 A (6 W)
  Interface	CAN Bus / Digital I/O
  Detection Target	Vehicle Tag (VT) / Pedestrian Tag (PT) / Zone Tag (ZT) / I View+ / External Digital I/O

• SAFLASH Type

• Projector

  A safety assistance device that prevents collision accidents by projecting images onto the site floor.

  •
  •

  Product Type	300W FANLESS	200W	300W	400W	600W
  Operating Power	AC 220V / 60Hz
  Visible Light Output	90 lm/W
  Color Temperature	8000-9000 K
  LED Manufacturer	OSRAM
  LED Lifetime	40,000 h
  IP Rating	IP 66		IP 67
  Lens Options	13 ° / 20 ° / 30 ° / 53.5 °
  Weight	15 kg	10 kg		16 kg

• Line Light - Basic Line

  A safety indication product that forms linear guides on the floor, clearly distinguishing working areas and movement paths.

  •
  •

  Operating Power	DC 10 ~ 90 V	LED Lifetime	50,000 h
  Color	Green, Orange, Red	IP Rating	IP 65
  Current Consumption	Red: 21.5 W / Blue: 36 W

• Line Light - Pro Line

  A safety indication product that clearly distinguishes working areas and movement paths by forming linear guides on the floor.

  •
  •

  Operating Power	AC 100 ~240 V	LED Lifetime	30,000 h
  Color	Green, Orange, Red	IP Rating	IP 40
  Current Consumption	50 W

• Line Light - U Line

  A safety indication product that clearly distinguishes working areas and movement paths by forming curved (U-shaped) guides on the floor.

  •
  •

  Operating Power	DC 10 ~ 80 V	LED Lifetime	30,000 h
  Color	Green, Orange, Red	IP Rating	IP 67
  Current Consumption	16 W

• Flash Light

  A safety product that alerts individuals to hazardous situations through warning signals in low-visibility areas.

  •
  •

  Operating Power	DC 24 V, AC 110 V / 220 V	LED Lifetime	50,000 h
  Color	Red	IP Rating	IP 66
  Current Consumption	12 W / 24 W	Brightness	1,150 lm ~ 2,210 lm

  Current Consumption	12 W / 24 W	LED Lifetime	50,000 h
  Color	Red	IP Rating	IP 66
  Brightness	1,150 lm ~ 2,210 lm
  Operating Power	DC 24 V, AC 110 V / 220 V

• LED Bar

  A visual safety solution using LED bar lights to clearly mark work area perimeters and pedestrian pathways.

  •
  •

  Operating Power	DC 24 V	Color	Red / Green / Orange (4 wire)
  Current Consumption	14 W	Dimensions	18 × 10 × 4,000 mm
  Detection Height	4 m (extendable in 1 m increments)	IP Rating	IP 20 / IP 65

  Operating Power	DC 24 V	Color	Red / Green / Orange (4 wire)
  Current Consumption	14 W	IP Rating	IP 20 / IP 65
  Detection Height	4 m (extendable in 1 m increments)
  Dimensions	18 × 10 × 4,000 mm

• Laser

  A laser guidance device that projects lines onto the floor to demarcate work areas and provide clear path indications.

  •
  •

  Operating Power	Minimum 100 mA	Color	Red or Green
  Lifetime	10,000 h	Laser Line Thickness	30 mm ~ 80 mm
  Weight	0.2 kg	IP Rating	IP 67

• CPC

  A floor-projection safety marking device available in S/M/L sizes to suit various site environments and application ranges.

  •
  •

  	Green Light	200W	300W	400W
  Current Consumption	27 W	68 W	88 W	88 W
  Diameter at 5 m height	-	2 m	3 m	4 m
  Diameter at 10 m height	-	4 m	6 m	8 m

• Arrow Light

  A directional safety marking device that provides intuitive guidance by projecting directional arrows onto the floor.

  •
  •

  Operating Power	DC 10 ~ 80 V	LED Lifetime	50,000 h
  Current Consumption	Min. 3 W / Max. 27 W	Operating Power	- 40 ~ 80 ℃
  Color	Red, Blue, Green	IP Rating	IP 67

• Traffic Light

  Used in various sites such as crosswalks, cranes, and roads, this signal guidance device prevents collisions between pedestrians and vehicles.

  •
  •

• Display Panel

  A customizable display device that allows users to configure text, images, and dimensions according to the site environment.

  •
  •

• Voice Alarm System

  A voice alarm device that delivers immediate warnings to workers through voice guidance in dangerous situations.

  •
  •

  Operating Power	DC 12 ~ 35 V	Detection Area	3.0m × 3.5m (at 2m height)
  Current Consumption	MAX 100 mA	Dimensions	164 × 111 × 94.5 mm

  Operating Power	DC 12 ~ 35 V	Current Consumption	MAX 100 mA
  Dimensions	164 × 111 × 94.5 mm
  Detection Area	3.0m × 3.5m (at 2m height)

• SAPASS - Straight Type, Folding Type, Fence Type

  A safety barrier system that prevents accidents within work zones by restricting access upon vehicle detection.

  •
  •
  •

  Operating Power	AC 220 V	Opening Angle	90 °
  Current Consumption	MAX. 150 W	Dimensions	335 × 280 × 1050 mm
  Detection Target	Vehicle Tag (VT)	Weight	Approx.70kg
  Detection Distance	1 ~ 30 m	Operating Power	-30 ~ 80 ℃
  Fequency	4.5 GHz	Operating Humidity	10 ~ 90 %(Non-Condensing Conditions Only)

  Operating Power	AC 220 V	Opening Angle	90 °
  Current Consumption	MAX. 150 W	Fequency	4.5 GHz
  Detection Target	Vehicle Tag (VT)	Weight	Approx.70kg
  Detection Distance	1 ~ 30 m	Operating Power	-30 ~ 80 ℃
  Dimensions	335 × 280 × 1050 mm
  Operating Humidity	10 ~ 90 %(Non-Condensing Conditions Only)

• SAPASS - Gate Type

  A safety barrier system that prevents accidents within work zones by restricting access upon vehicle detection.

  •

  Operating Power	DC 24 V	Current Consumption	40 ~ 60 W
  Travel Speed	0.8 ~ 1 s	Operating Power	-15 ~ 70 ℃
  Detection Area	3.0m × 3.5m (at 2m height)
  Dimensions	164 × 111 × 94.5 mm
