IPAS 1.0 Vehicle Tag

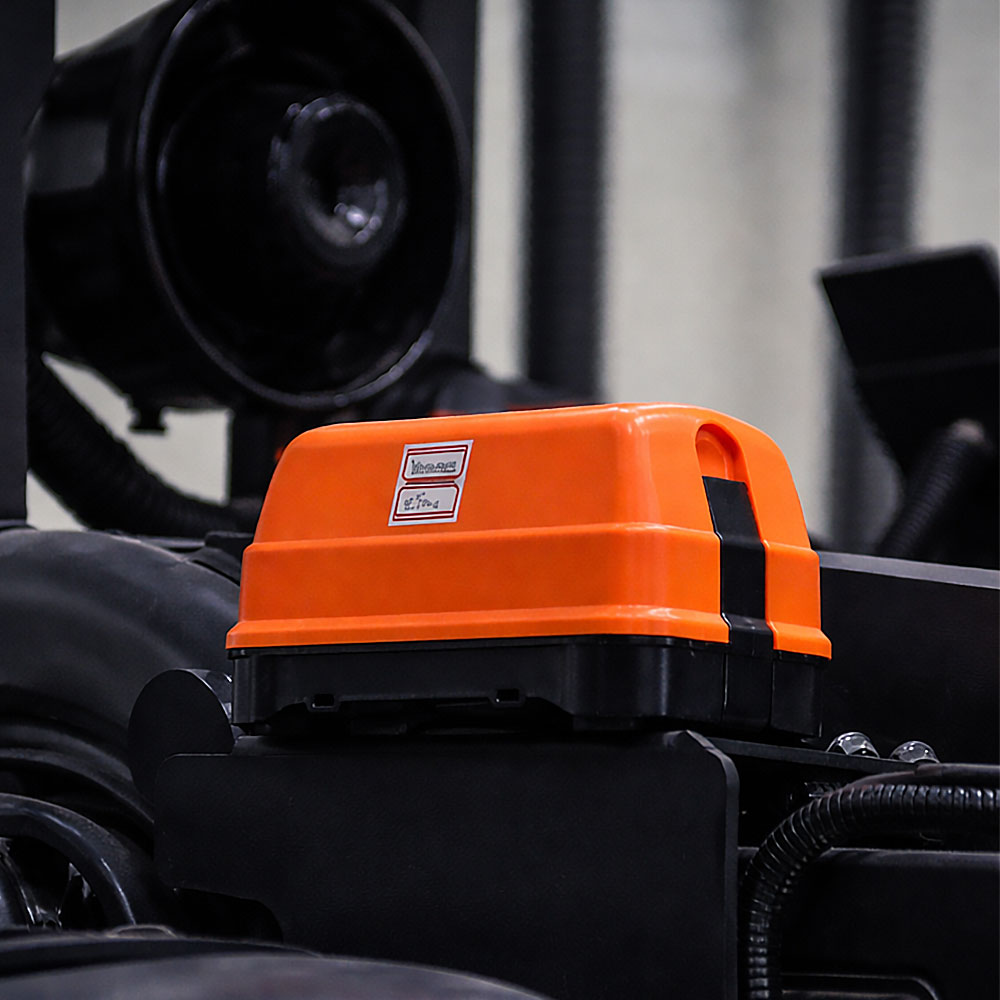

When a vehicle enters a Caution/Danger zone, the Vehicle Tag (VT) detects proximity and alerts the driver.
With the optional Indicator, drivers receive voice guidance,
and multi-color LEDs change based on distance to intuitively warn of hazards.
When a vehicle enters a Caution/Danger zone,
the Vehicle Tag (VT) alerts the driver with voice guidance,
and distance-based LED color transitions.
-
Vehicle Tag (VT) Specifications
Operating Power
DC 12 ~ 24 V
Current Consumption
300 mA 300 mA (DC 12 V)
Detection Range
1 ~ 10 m
Dimensions
177.8 × 84.1 × 86 mm
Weight
444 g
Mounting Method
Magnetic Mount
Operating Temperature
-30 ~ 85 ℃
IP Rating
IP 65
Alarm Type
LED Flashing
Operating Power
DC 12 ~ 24 V
Alarm Type
LED Flashing
Detection Range
1 ~ 10 m
Dimensions
177.8 × 84.1 × 86 mm
Weight
444 g
Mounting Method
Magnetic Mount
Operating Temperature
-30 ~ 85 ℃
IP Rating
IP 65
Current Consumption
300 mA 300 mA (DC 12 V)
Options
We provide optional equipment that can be additionally configured
to suit the site environment and working conditions.
Optionally configurable equipment tailored to site conditions.
-

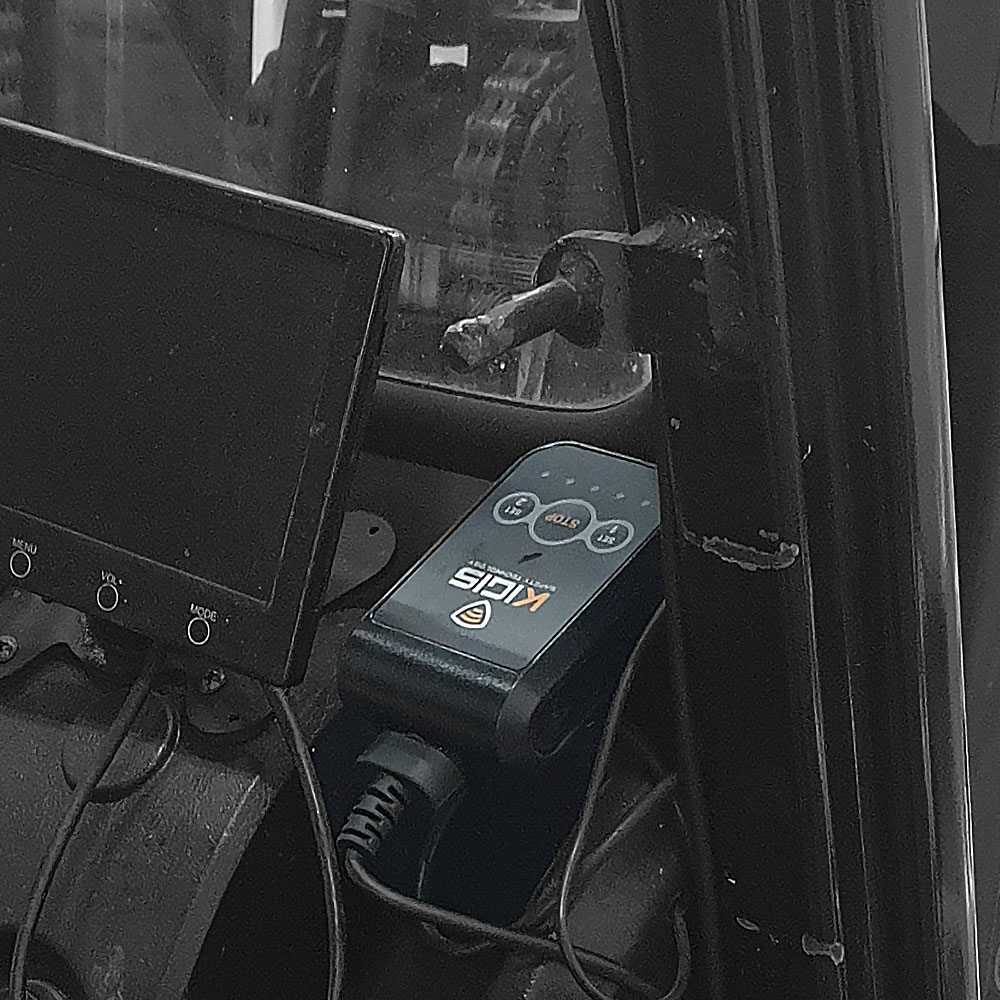

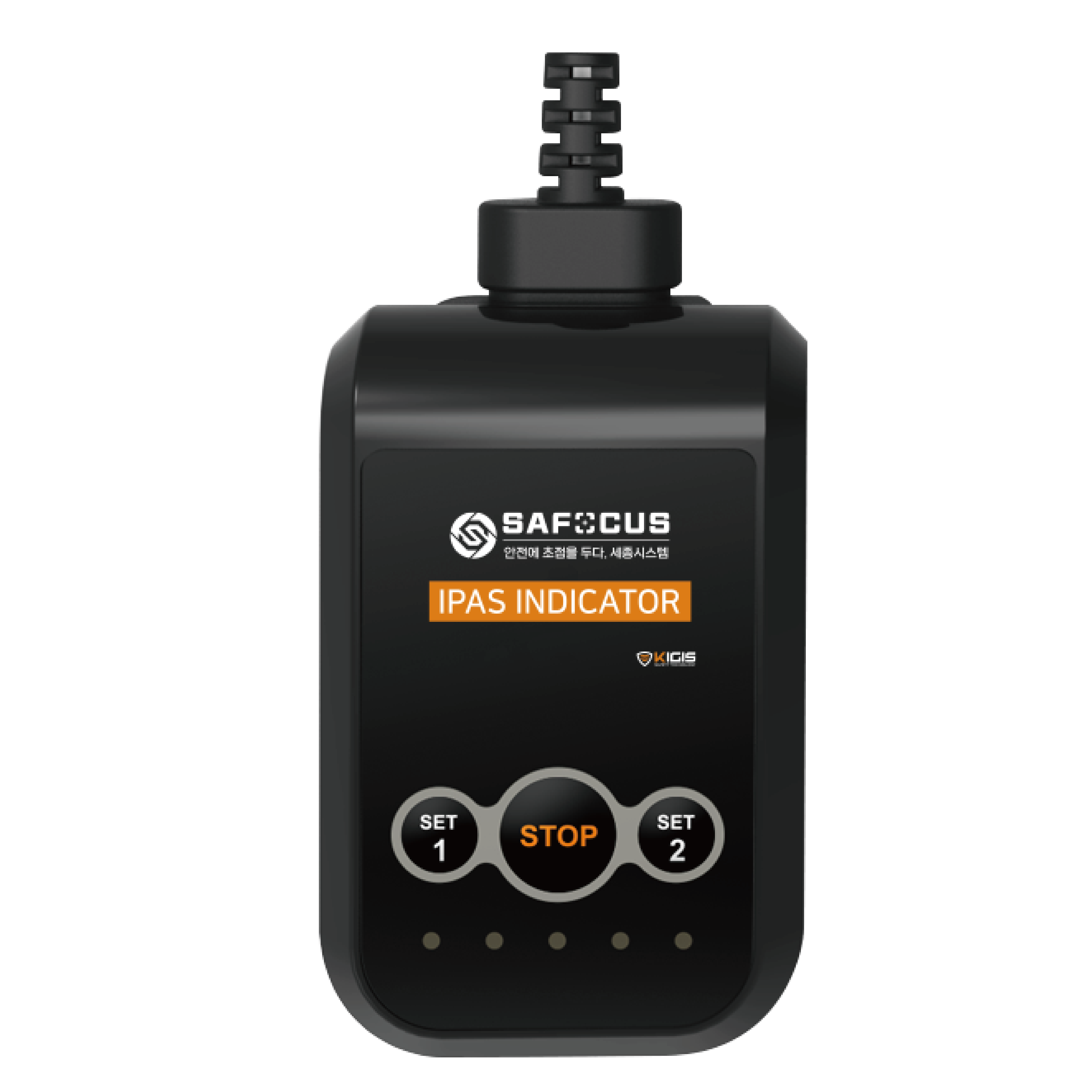

Indicator
A device that provides distinct voice alerts corresponding to pre-configured Caution and Danger zones.
Voice Alert
Caution Zone Detection (VT/PT): “Caution, please.”
Danger Zone Detection (VT/PT): “Danger, stay back."Operating Power
DC 12 V / 24 V
SPL / Distance
92 dB / 0.1 m
Mounting Method
Screw mounting (or adhesive tape)
Operating Temperature
-30 ~ 85 ℃
IP Rating
IP 65
Operating Power
DC 12 V / 24 V
SPL / Distance
92 dB / 0.1 m
Operating Temperature
-30 ~ 85 ℃
IP Rating
IP 65
Mounting Method
Screw mounting (or adhesive tape)
Voice Alert
Caution Zone Detection (VT/PT): “Caution, please.”
Danger Zone Detection (VT/PT): “Danger, stay back." -

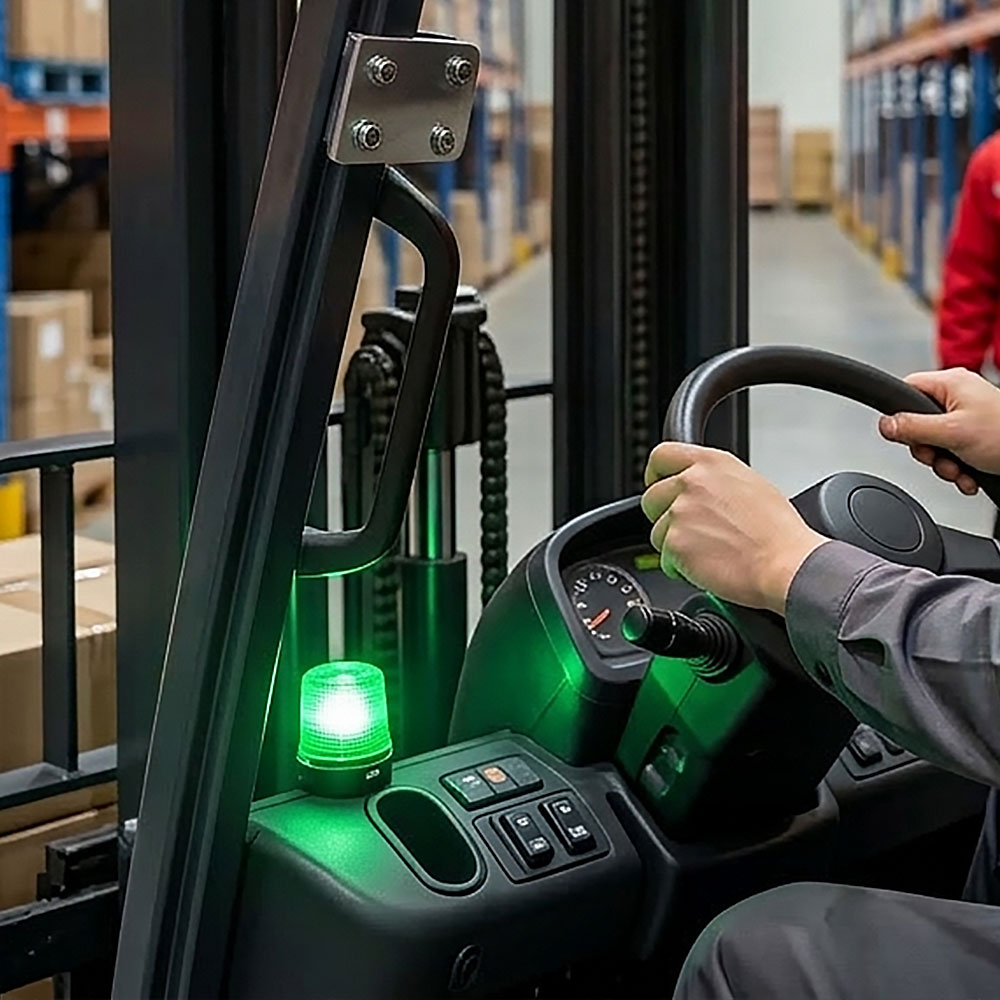

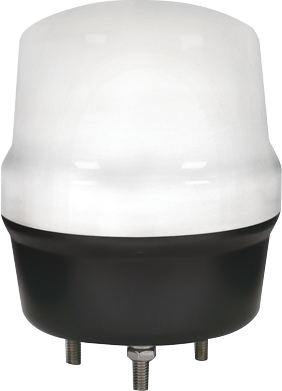

Multi-color LED
A device that provides alerts by changing colors according to the detected zone (Safe, Caution, and Danger)
Operating Power
DC 12 V / 24 V
Installation Location
Inside the vehicle
IP Rating
IP 65
Alerts (Safe Zone)
Green
Alerts (Caution Zone)
Orange
Alerts (Danger Zone)
Red
